Why Choose Plastic Leachfield Chambers?

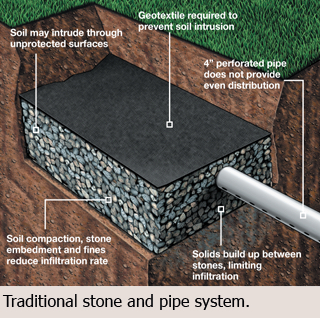

Chamber systems are easy to install. Engineered for strength and performance, they have greater design flexibility including a smaller footprint as compared with stone and pipe, and are made from recycled materials. These advantages of Infiltrator chambers add up to cost savings on labor, materials and time savings on the job.



Quick4 Standard chambers can be installed in a 36" wide trench.
Size: 34"W x 53"L x 12"H (864 mm x 1346 mm x 305 mm)
Effective Length: 48" (1219 mm)

The multiport endcap has eight molded-in high and low inlets to allow piping to enter or exit from multiple directions.
Size: 34"W x 16"L x 12"H (864 mm x 406 mm x 305 mm)
Additional Length per Trench: 26.4 (671 mm)
Invert Height: 8" (203 mm)


Quick4 High Capacity chambers can be installed in a 36" wide trench.
Size: 34"W x 53"L x 16"H (864 mm x 1346 mm x 406 mm)
Effective Length: 48" (1219 mm)


The multiport endcap has eight molded-in high and low inlets to allow piping to enter or exit from multiple directions.
Size: 34"W x 19"L x 16"H (864 mm x 483 mm x 406 mm)
Additional Length per Trench: 28.8" (732 mm)
Invert Height: 11.5" (292 mm)


Permitted for use in traffic areas.
Size:34"W x 75"L x 16"H

Storage Capacity:110 gal

Weight:38 lbs

Louvered Sidewall Height:10"

VIEW CUTSHEET

Content and images are courtesy of Infiltrator™ Water Technologies.
